Labelling systems

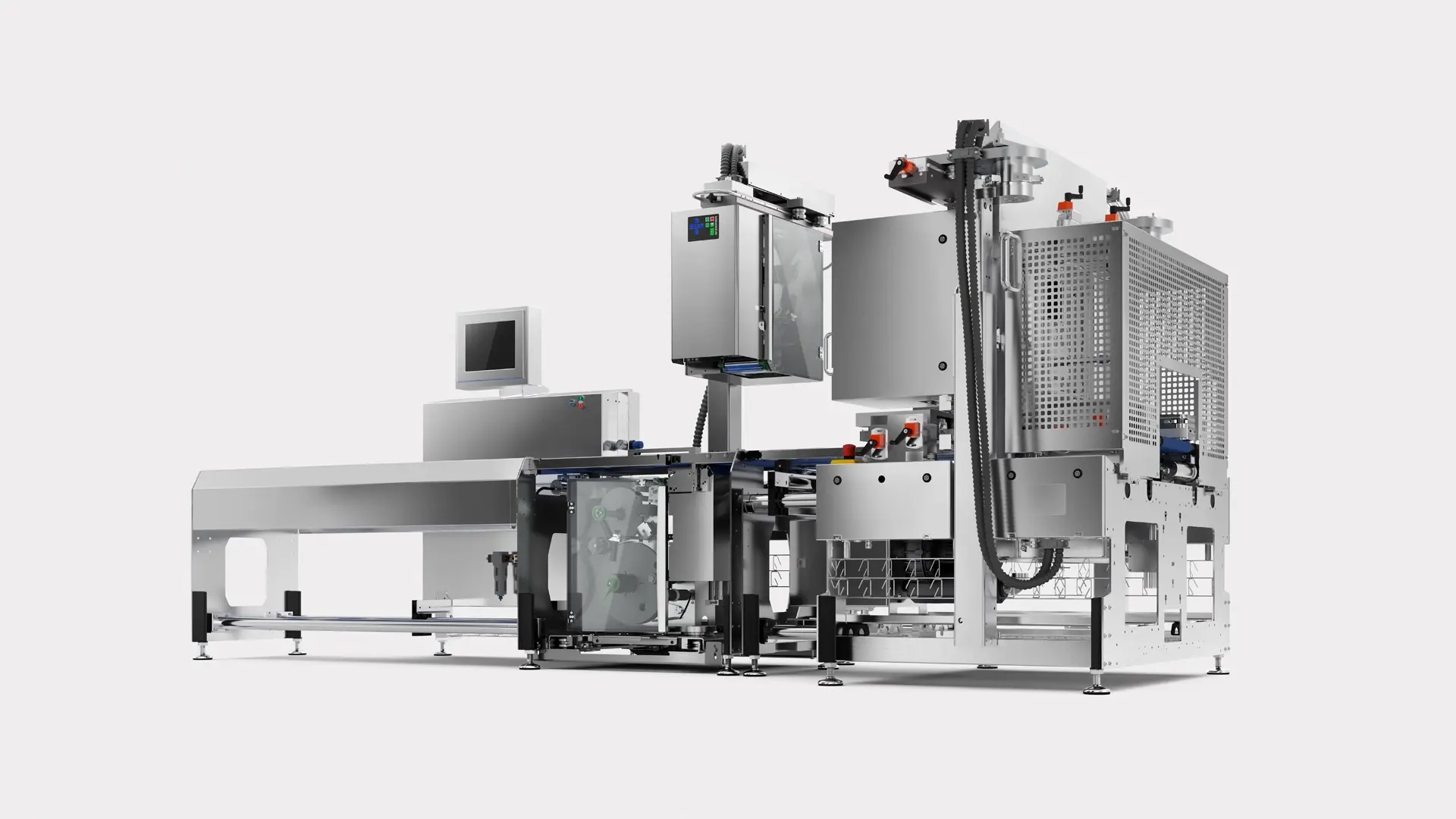

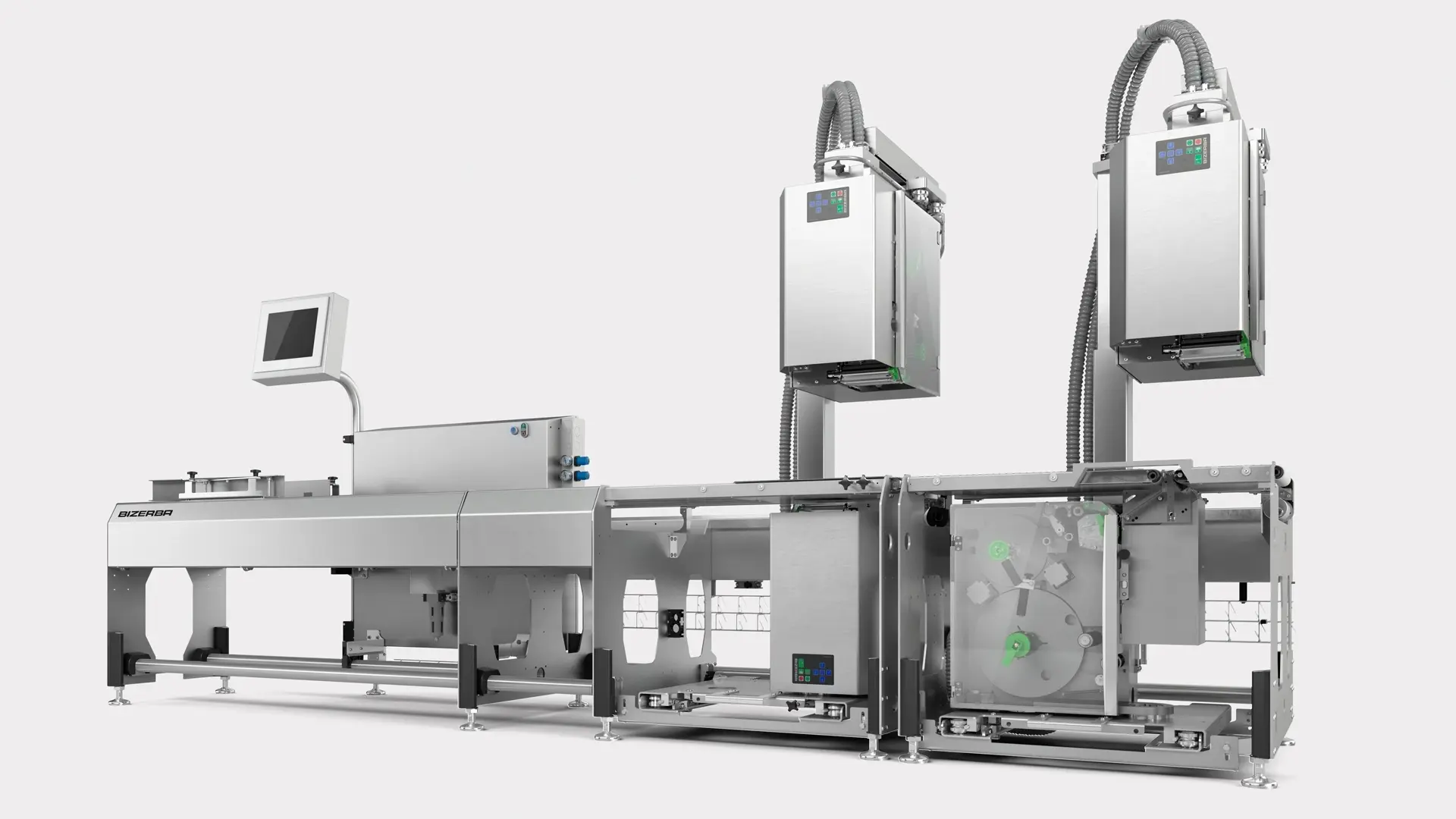

Weigh price labeling system GLM-I 170

Take automatic weighing and labeling of prepacked goods to a new level in the industrial food sector: A modular design and particularly space-saving labelers significantly reduce the system length in systems with multiple labelers.
Contact a consultant

Regardless of the conveying direction, always direct access from the front for maintenance and label roll change. The robust printing mechanism requires less maintenance and reduces downtimes. Throughput can also be increased due to a higher print speed. Very easy label roll change and the new, intuitive user interface make daily work on the GLM-I more convenient. Highly flexible, durable, robust and a design which is easy to clean round off this package loaded with benefits. Tip: By additionally integrating the intelligent inspection system LabelSecure for visual quality control you can detect errors in the packaging process in good time.

Products that may also interest you:
Metal detector iMD pro
This compact metal detector is impressive in terms of its reliable performance and highest detection sensitivity.
Industrial software BRAIN2
The BRAIN2 software platform sets new standards in terms of centralization, data exchange and production reliability.

Highlights

  • Weighing and packaging of prepacked products with a minimum of space
  • Regardless of the conveying direction - quick label roll and printhead change thanks to direct front access
  • Control of up to 6 labelers
  • No thermal transfer ribbon needed due to Eco Motion technology
  • Modern and intuitive user interface
  • Processing of both paper and transparent film labels

Product images and technical information may differ and may not be available in your country.

Areas of use

  • weight-dependent and weight-independent labeling area
  • Output up to 170 packages/minute
  • Commissioning in shipping
More information, please

How can we help?

We are happy to inform & advise you on your options with this solution or service. Please provide us with some information so that we can assist you in the best possible way. We will get back to you as soon as possible.

Read more

Details & options

Specification Facts Details
Label size min. B 30 mm x H 30 mm bis B 120 mm x H 150 mm (depending on applicator type, further dimensions available as special version)
min. B 30 mm x H 30 mm bis B 120 mm x H 150 mm (depending on applicator type, further dimensions available as special version)
Label output 120 mm
80 mm
120 mm
80 mm
Interfaces Ethernet (TCP/IP)
RS232
RS422
Ethernet (TCP/IP)
RS232
RS422
Product Dimensions Range (L x W x H) 80 - 450 x 40 - 400 x >1 - 250 mm
80 - 450 x 40 - 400 x >1 - 250 mm
Thermal transfer ribbon Core diameter 25,4 mm
Outer diameter 81 mm
Core diameter 25,4 mm
Outer diameter 81 mm
Printing speed max 300 mm/s
max 300 mm/s
Resolution 8 dot/mm (optionally 12 dot/mm)
8 dot/mm (optionally 12 dot/mm)
Print width 80 mm (optionally 104)
80 mm (optionally 104)
Applicator Air-jet applicator
Piston applicator
Rotary applicator
Belt applicator
Air-jet applicator
Piston applicator
Rotary applicator
Belt applicator
Printing technology Thermal direct (optionally thermal transfer)
Thermal direct (optionally thermal transfer)
Weighing range 1,5 kg
3 kg
1,5 kg
3 kg 		e=1 g
e=1 g
e=1 g
e=1 g
Label roll Core diameter 76 mm (optionally 74-82 mm, 99-107 mm)
Outer diameter 300 mm
Core diameter 76 mm (optionally 74-82 mm, 99-107 mm)
Outer diameter 300 mm
Vision system LabelSecure basic (optionally fully integrated synchronous pack data collection)
LabelSecure basic (optionally fully integrated synchronous pack data collection)
For take away

Downloads

You can find operating instructions, software updates, licenses, service requests for your personal device in the Bizerba customer portal.
Data Sheet GLM-I (1 MB)
Fact Sheet GLM-I 170 (791 KB)
Get in touch
Please contact our specialists at any time
