Countertop scale Q1 expert 100 extended pole

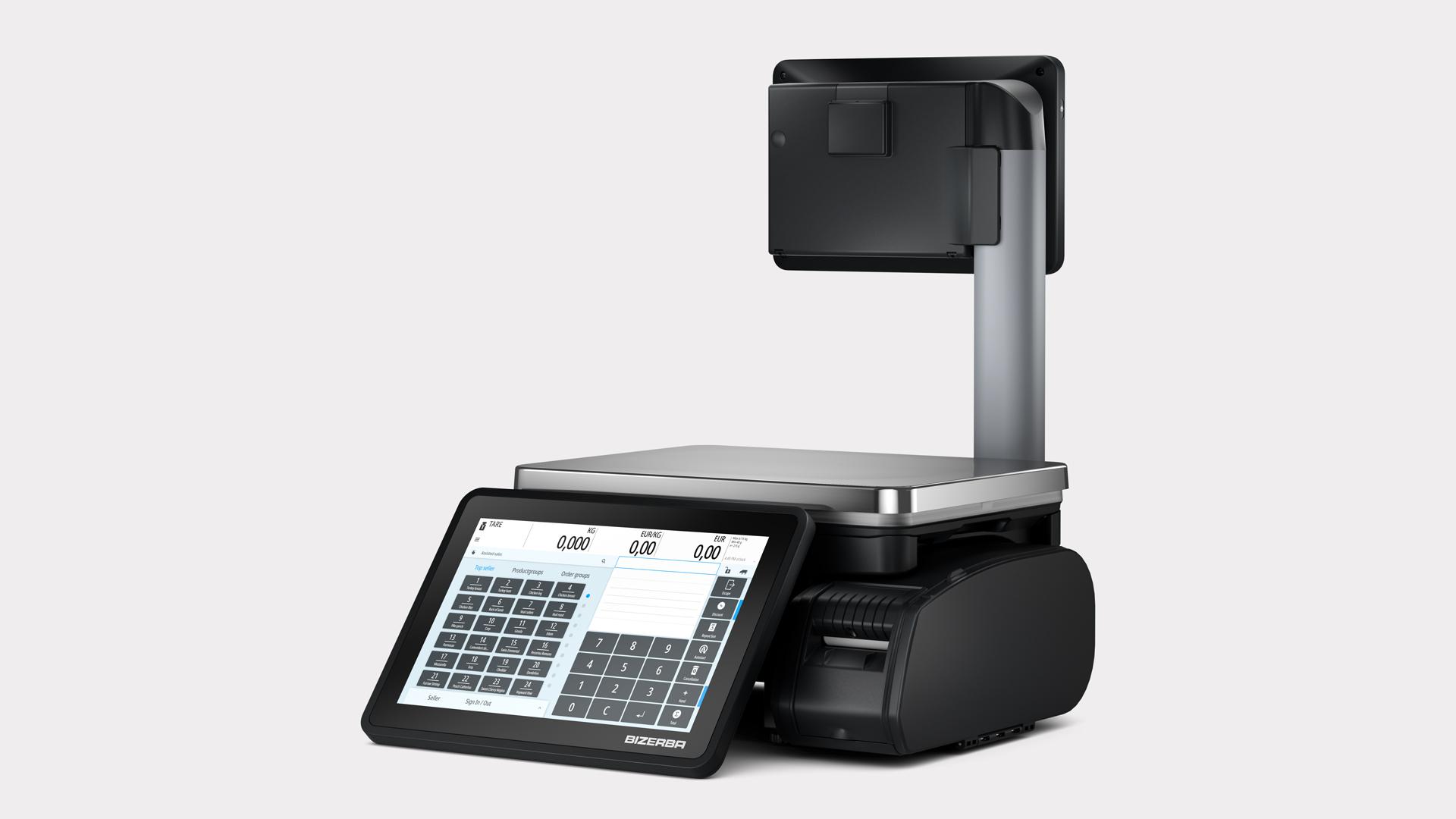

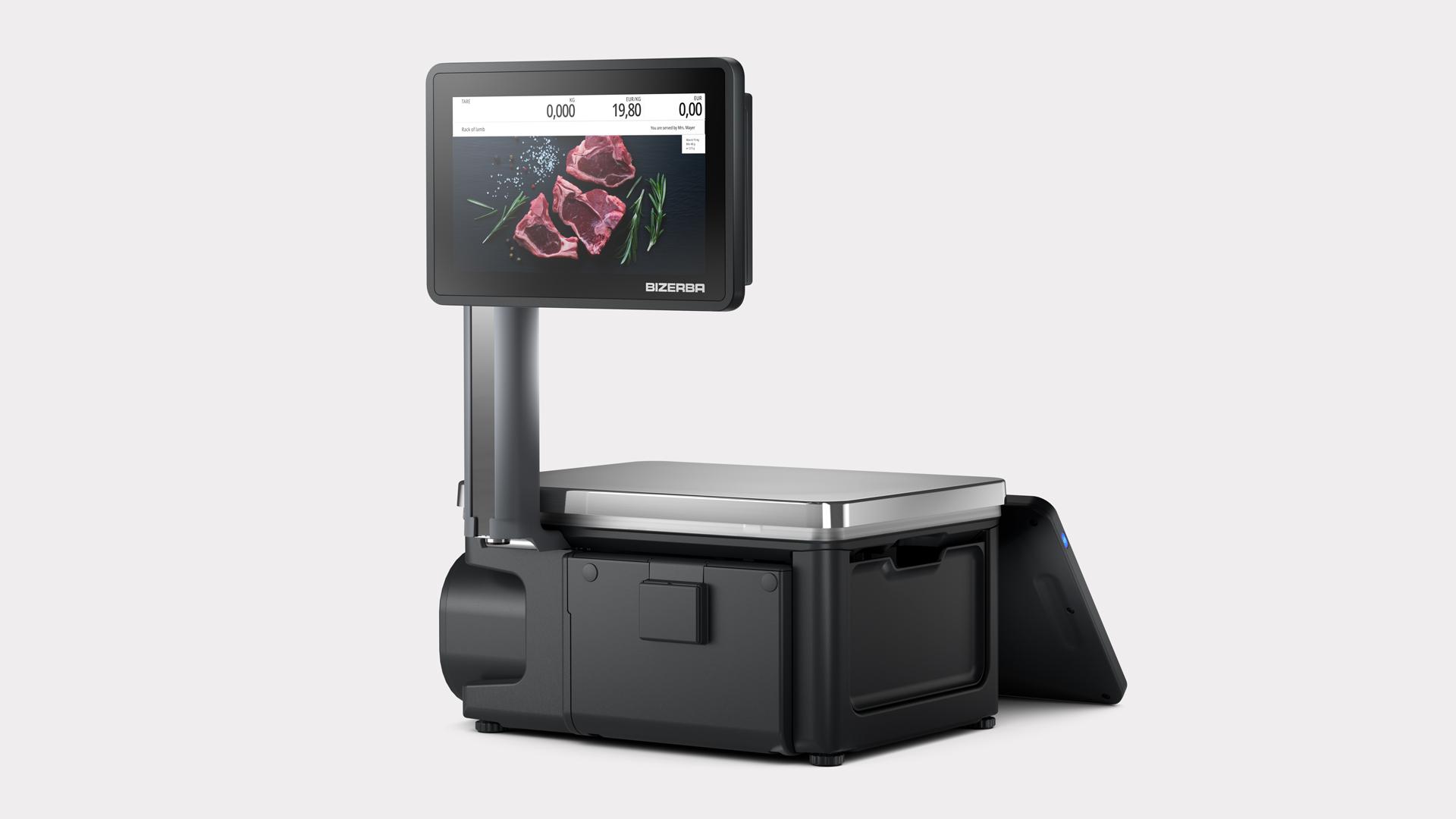

Q1 expert 100 with extended pole – flat, intuitive, efficient retail scale for assisted sales, self-service & labeling, ensuring optimal visibility

The Q1 expert 100 with extended pole combines flexible hardware and software architecture with a multitude of application possibilities. Its plug-and-play functionality enables rapid interchange of printers and displays, including the option to position the customer display higher for optimal visibility in diverse workplace setups – regardless of counter height or working posture. Engineered for durability, the printer features sturdy metal hinges and advanced linerless cutter technology, delivering up to 500,000 cuts without replacing cutting components. This balance of adaptability, ergonomic design, and long-lasting performance makes the Q1 expert an ideal solution for various retail environments.

Key Features:
  • Modular Design: Flexible hardware and software concept for diverse applications
  • Plug-and-Play Compatibility: Quick and easy replacement of printers and displays
  • Intuitive GUI: User-friendly interface combined with capacitive touch technology for enhanced user comfort
  • Management Software: Seamless management of device and production data with transparent monitoring capabilities
  • Ergonomic Design: Features side handles for easy lifting and a slim weighing platform for improved accessibility
  • Versatile Model Options & Features: Offers various options and features, including an integrated drawer e.g. for storing paper rolls
  • Expandable Performance: Initial impressive performance that can be upgraded in the future with a pluggable SMARC module (CPU and RAM)
  • Operating System Compatibility: Available with Windows 11; supports both RetailStore and third-party software
  • Software Application Extensions: Includes options for My-Order, Queuing, Object Recognition, Theft Prevention, Digital Receipt, and more

Highlights

  • A modern, user-friendly GUI allows fast working and optimal operating processes
  • Modular design allows flexible system expansion as needed
  • Latest auto cutter technology with a long service life
  • Slim design ensures clear view and easy access
  • Integrated drawer e.g. for storing paper rolls
  • Optimized printers with super-fast paper exchange concept

Product images and technical information may differ and may not be available in your country.

Areas of use

  • Suitable for counter sales, self-service, price labeling/pre-packaging, and checkout
  • Compatible with external load receptor for weighing items over 30 kg
  • Ideal for use in butcher shops, bakeries, supermarkets, delicatessens, bulk stores, hardware stores, and the hospitality industry

Details & Options

Displays: Capacitive screen, continuously adjustable, with Plug & Play integration for quick and flexible start-up

Printer: Plug & Play for easy maintenance. Various options (2"/3", standalone)

Power consumption: 29.6 W in operation (12" operator display + 10" customer display), 1.5 W in stand-by mode – efficient and sustainable
  • WiFi (2.4 / 5 GHz; can be retrofitted)
  • External second printer (standalone)
  • Second cash register drawer with Y-cable (optional)
  • Tilt compensation optional up to 2°. Default value up to 0.3°
  • Energy-saving mode Wake on LAN. Info: Wake on LAN is not supported after the device has been disconnected from the power supply in sleep mode and is reconnected. In this case, the device must be switched on manually
Specification Facts Details
Maximum load 30 kg
60 lb
Memory SSD 128 GB
SSD 256 GB (optional)
Ambient air humidity max. 90% relative humidity (non-condensing)
Operating system Windows® 11 Ltsc
Supply medium Mains connection 100 - 240 V, 50/60 Hz
Accuracy class III
Installation area (L x W) 800: 325 x 360 mm
Display resolution customer display 1280 x 800 (16:10), WXGA
1024 x 600 (WSVGA)
Size/type customer display 12,1" TFT
10,1" TFT
Random access memory 8 GB
16 GB
Voltage variants 120 - 240 V 50 - 60 Hz, AC
Size/type Operator Display 12,1" Touch TFT
10,1" Touch-TFT
Verificationable ☑
Label size 105 mm (default) / max. 120 mm
max. 150 mm/s
2"/3" - 58/80 mm 		Roll diameter
Print speed
Roll width
Interfaces Ethernet (TCP/IP)
USB 2.0
USB 3.0
WLAN
1 x RJ12
Temperature range +14 °F to +104 °F / -10 °C bis +40 °C Operation
Weighing software RetailStore
RetailBridge (OEM)
Printer 2" T/E
2" T/L
2" T/L Auto-Cutter
3" T/E
3" T/L
3" T/L Auto-Cutter
3" T/E Standalone
3" T/L Auto-Cutter Standalone" 		Auto-Cutter: More than 500,000 cuts without having to replace cutting components. This performance can be guaranteed with Bizerba paper.
Paper from third party providers may not achieve the same results
Weight ca. 14.5 kg Q1 expert 100
Display properties Multi-Touch, capacative Operator Display
Weighing range 60 lb
3/6 kg
12 kg
6/15 kg
15/30 kg
6 kg
15/30 lb
30/60 lb
30 kg
30 lb 		e=0.02 lb
e=1/2 g
e=2 g
e=2/5 g
e=5/10 g
e=2 g
e=0.005/0.01 lb
e=0.01/0.02 lb
e=5 g
e=0.01 lb
Color signal black RAL 9004
Processor type Intel Elkahrt Lake X6413E
Operator display resolution 1.024 x 600 (WSVGA)
1280 x 800 (WXGA)
Approval information CE
UL
Dimensions range (L x W x H)/(D x W x H) 100: 408 x 397 x 219 mm Q1 expert 100 with 10"/7" Display
